Scan 3000 Ai
Automatic AI colony counter and inhibition zone reader
Ref. 434 300
Scan 3000 Ai is a cutting-edge tool designed to automate and standardize colony counting in microbiological analyses. Thanks to artificial intelligence, it offers exceptional performance and is constantly evolving to incorporate the latest technological advances. It is compatible with all sizes of Petri dishes up to 90 mm and all types of culture media.
- Minimum size of detected colony: 0.03 mm
- Counting on round Petri dishes with a diameter of 55 to 90 mm
- Counting on pour, surface, Spiral and circle plating
- Counting on chromogenic agars, Petrifilm™, MC-media Pads™, Compact Dry™, Easy Plate™, filtration membranes
- Reading of inhibition zones
- AI-powered colony counting
A leap forward in counting performances
Automatic counting of colonies in 1 second
Constant accuracy up to 98%
400 plates read per hour
Traceability of results
Unrivaled precision with artificial intelligence
The power of artificial intelligence of the Scan Ai automatic counter boosts the analysis of Petri dishes. Scan Ai standardizes colony counting and improves the accuracy of your analysis results. The scientific expertise of the technical teams remains within the lab.
- •25% more accurate than a conventional counter
- •Detection and counting with models trained with AI
- •Discrimination of artifacts (bubbles, markings, etc.)
- •Reading on 100% of the plate
- •Classification and counting of bacteria, yeasts and molds
What are the proven counting performances of Scan Ai compared to a standard colony counter?
25% more accurate than a standard colony counter

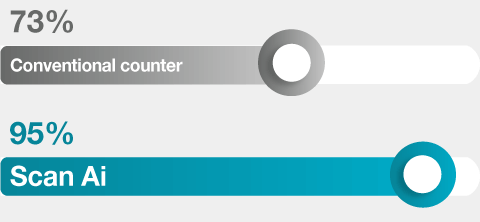

Total count accuracy
TBX positive colonies accuracy

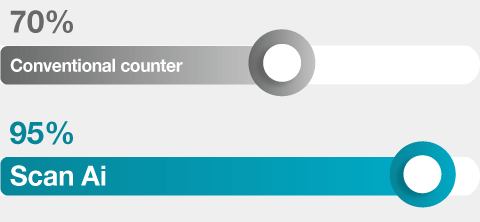

MRS accuracy

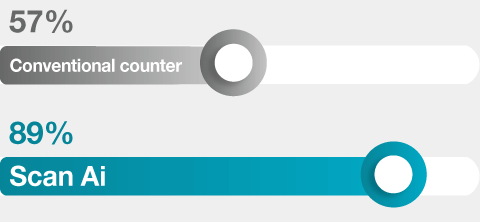

VRBL accuracy
Excellent performances of pre-trained models
The AI of the Scan Ai automatic counter has been trained on more than 1 million annotated images from different sectors of activity.
We have thus integrated counting models for common culture media:
- •Total count (PCA/TSA)
- •Coliforms
- •Enterobacteriaceae (VRBL/VRBG)
- •Escherichia Coli (TBX)
- •Lactobacilli (MRS)
- •Mossel
- •SDA

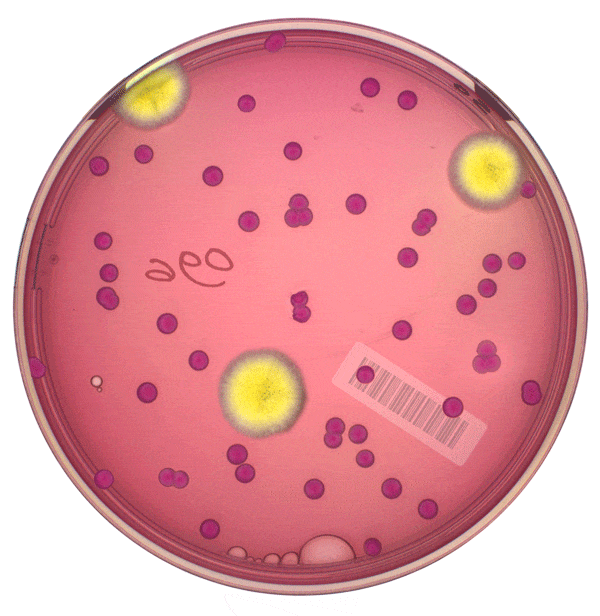

- •Symphony
- •Yeasts/molds
- •GVPC
- •Compass Bacillus Cereus
- •Rhapsody
- •PDA
- •Blood Agar
- •MILLIFLEX OASIS™
(TSA, SDA, R2A) - •Staphylococci
(Baird-Parker, Baird-Parker RPF)

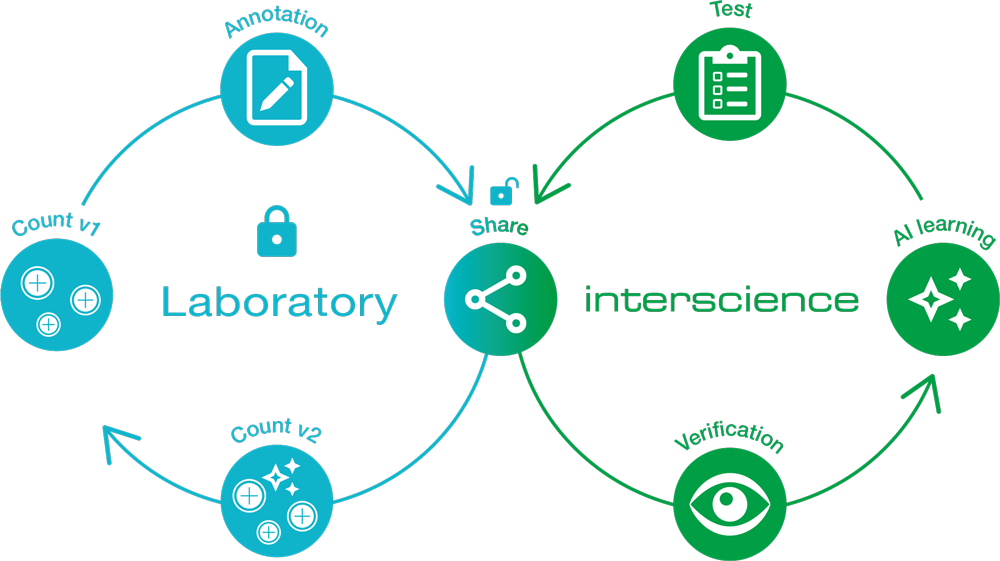

Performance and safety with locked AI
Continuous improvement of AI performance
- •Learning from images annotated with AI
- •Colony counting at the cutting edge
- •Software updates at your convenience
Enhanced security level
with locked AI
- •Works offline with locally stored computer data
- •Stability of IQOQ updates and qualifications
- •On-demand Scan Ai software updates
A wide range of plates and media
Scan 3000 Ai works with all types of Petri dishes up to 90 mm in diameter.
It offers a wide choice of environments and support for greater flexibility in use.
Pour and plate mode
Spiral
Circle

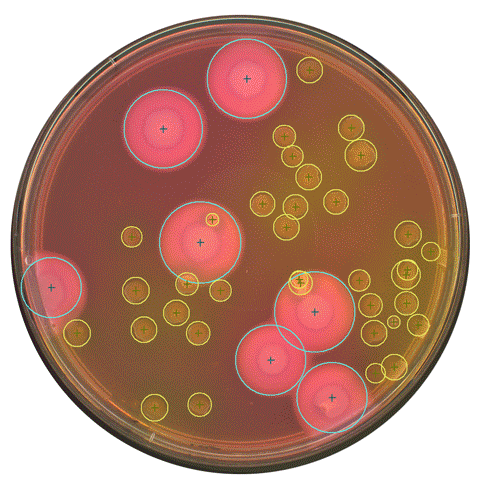

Chromogenic
Petrifilm™
CompactDry™
MC-Media Pads™
Easy Plate™
Filtration membranes
Contact plates
MILLIFLEX™ OASIS™
Antibiogram on blood agar
Antibiogram on Mueller Hinton agar

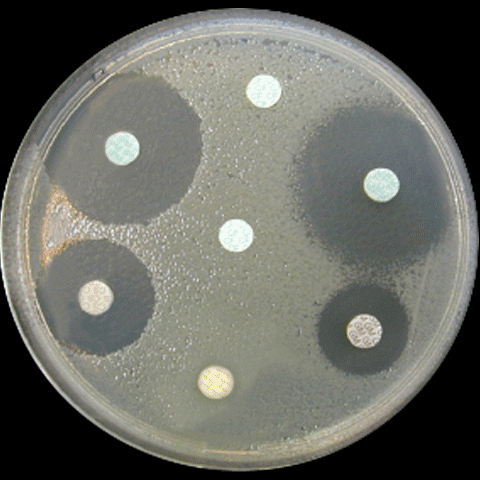

Mueller Hinton disks before/after reading
Rapid reading of antibiograms
For precise clinical results and decision-making for the diagnosis and treatment of patients, the automated reading of antibiograms remains the most relevant solution.
- •Up to 7 antibiotics in 1-3 seconds
- •Measurement accuracy: ± 0.2 mm
- •Integrated databases: CA-SFM, Eucast, CLSI
Data integrity

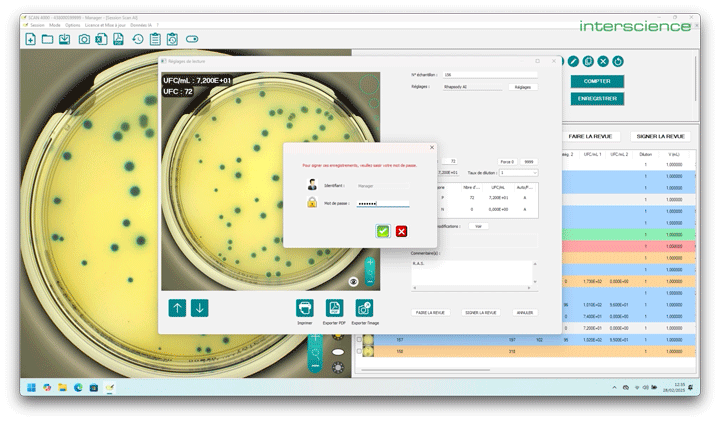

Scan Ai receives and sends information from LIMS and/or dataLink and digitizes the counting. All the data from the analysis are traceable and auditable. The results are validated by a double electronic signature. Thanks to account management, you have multi-level access for the validation of results. This solution thus ensures the reliability and security of data in accordance with FDA guidelines, 21 CFR Part 11 and GMP (Good Manufacturing Practices) Annex 11.

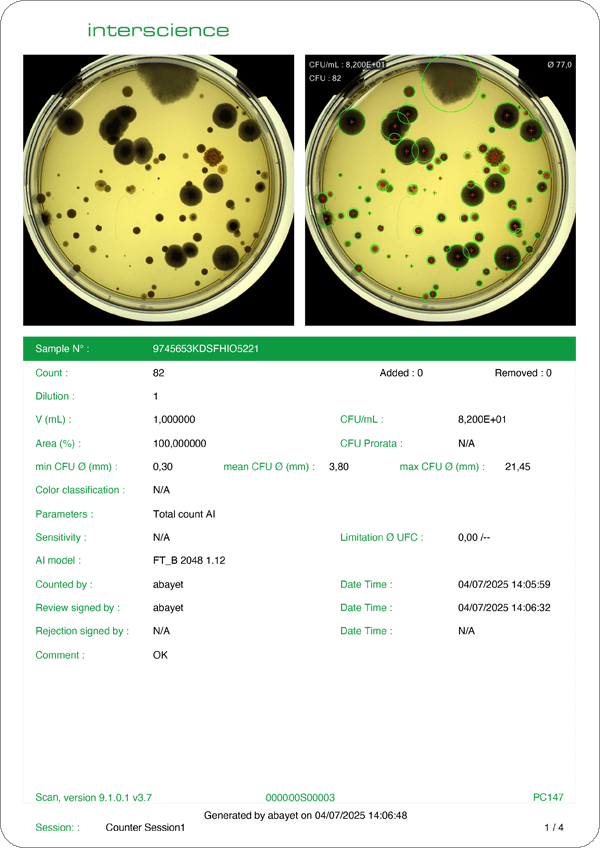

Traceability and printing of results
Scan 3000 Ai
connects to the LIMS in bi-directionality and can be connected to the diluter and plater via dataLink, a traceability system. It offers multiple export possibilities to save time on manual entry and thus increase the security and quality of your analyses.Export your results to your PC or archive them in CSV, Excel™, OpenOffice™, PDF, SCA, BIO format. You can also export images from the camera in JPEG, PNG and BMP format.

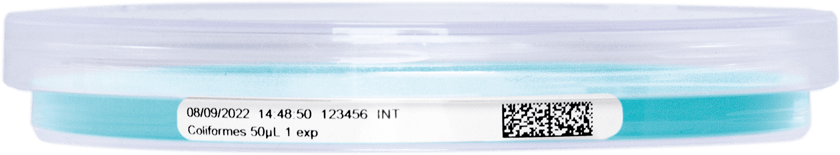

All your data on the Petri dish with dataLink
With dataLink, the sample is monitored from the plating to the automatic colony counting.
Set the parameters for the label to be adhered to the side of the plate. The colony counting is then optimized.

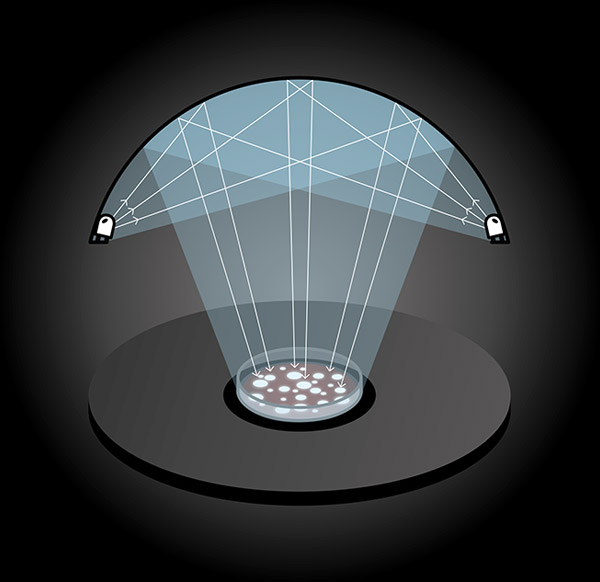

White LED Dome lighting,
reflection and shadow free
Petri dishes are difficult to light, because they are transparent and reflective. Heterogeneous lighting often creates artifacts on the meniscus of the agar and on the edge of the plate. These artifacts are counted as colonies or prevent perfect counting.
We have designed a white diffusing dome that provides 360° lighting for the plate, without any reflection or shadow. The light is diffused from all points, and provides lighting without artifacts for counting even on the edge of the plate.
Warranty
Scan automatic colony counters have 3-YEAR warranty (parts and labor) just by sending the warranty card back.
Our expertise is with you every step of the way
Over the last 20 years, Interscience has developed expertise gained from clients all over the world. As a French designer and manufacturer, we offer a wide range of colony counters, from manual to automatic. More than 5000 Scan are used daily throughout the world.
- •R&D team dedicated to AI since 2019
- •More than 1 million annotated images to guarantee effective learning
- •5,000 Interscience Scan automatic counters used daily
- •Easy implementation with IQOQ support
- •Customer Support and Application teams for installation and training
- •Additional machine learning with your analysis protocols to refine learning
Applications
Scan 3000 Ai is used for colony counting by artificial intelligence on a wide range of different media, techniques and culture media for QC. The equipment enables spiral counts and Petrifilm™ reading with accuracy and repeatability. Interpretation of chromogenic media is also available.
Videos
Scan Ai - Automatic AI colony counter and inhibition zone reader - Overview of the range
Download the videoFrom sample preparation to bacterial analyses - Overview
Download the videodataLink pro - Labelling on the edge of the Petri dish
Download the videoResources
Publication: 2023
Surface Chemistry Dictates the Osteogenic and Antimicrobial Properties of Palladium‐, Platinum‐, and Titanium‐Based Bulk Metallic GlassesSpecifications
| Scan 3000 Ai | |
| Reference | 434 300 |
| OVERVIEW | |
| Painted stainless steel shell | N |
| LIMS/SIL connection | N |
| USB connection | N |
| Available with dataLink/dataLink pro traceability system | N |
| Counting on pour, surface, Spiral and circle plated Petri dishes | N |
| Counting on chromogenic dishes | N |
| Counting on PetrifilmTM, Compact DryTM, MC-Media PadsTM, EasyPlateTM, filtration membranes | N |
| Automatic counting | N |
| Inhibition zone reading | N |
| Counting on 100% of the Petri dish | N |
| AI-powered colony counting | N |
| COUNTING | |
| Counting | Automatic with manual control (adding/removing colonies) |
| Automatic separation of clustered colonies | N |
| Creation of polygonal exclusion zones | N |
| Classification of bacteria, yeasts and molds | N |
| Counting time | Up to 1000 colonies per second |
| Minimal size of colony | 0.03 mm |
| INHIBITION ZONE READING | |
| Antibiotic disc detection | Automatic with possibility to manually add or remove |
| Automatic detection of antibiogram support | Disks (several brands simultaneously), wells, peni-cylinder (steel, plastic) |
| Display resolution | ± 0.1 mm |
| Inhibition zone measurement accuracy | ± 0.2 mm |
| Number of antibiotic paper disks | Up to 7 antibiotics on a Ø 90 mm Petri dish |
| Reading time | 7 inhibition zone reading between 1 to 3 s |
| Interpretation system | CA-SFM Human health / EUCAST / CA-SFM Veterinary / CLSI (Clinical, Laboratory Standards Institute) / Customizable list |
| SPECIFICATIONS | |
| Color camera | Ultra HD CMOS |
| Lens | HD japanese lens |
| Zoom | x 69 |
| Resolution (megapixels) | 5 |
| White LED Lighting technology | White LED Dome indirect lighting |
| LED Lighting system | Automatic with 7 combinations, top and/or bottom light, white or black background |
| Petri dish dimensions | Ø 55 mm - Ø 90 mm |
| Color detection | 4 colors on the same dish + 2 colors to exclude |
| Languages | English, French, Japanese, Chinese, Russian, Spanish, German |
| Voltage - Frequencies | 100-240 V~ 50/60 Hz |
| Fuses | T2.5A L 250V 5x20mm |
| Max. Power | 70W |
| International protection marking | IP00 |
| Warranty | 3-year (the warranty online) |
| Spare parts availability | 10 years |
| In compliance with | 21 CFR Part 11, ISO 7218 and AOAC 977.27 |
| TRACEABILITY | |
| USB Data export | Recountable session, ExcelTM, PDF report, jpg, png and bmp images |
| Data security | Modified data traceability in conformity with 21 CFR part 11 |
| Results/traceability | Image / sample number / comments / date / time / antibiotic name / bacterial name / measured diameter / result categorized according to standards / minimum and maximum critical diameter |
| PC MINIMUM REQUIREMENTS | |
| Operating sytem | WindowsTM 10 or 11 (or higher) |
| Processor | Intel i7, 2.8 GHz or higher (i9 or xeon gold) |
| Graphic card | Nvidia RTX 3060 or 4050 or higher (Nvidia brand only) |
| RAM | Minimum 16 GB required for use of Scan |
| Equipments | Free USB 3.0 port |
| Screen | 1920 x 1080 pixels or higher |
| WEIGHT AND DIMENSIONS | |
| Dimensions (w x d x h): Scan | 32 x 32 x 44 cm |
| Net weight: Scan | 11.5 kg |
| Box (w x d x h) | 60 x 50 x 55 cm |
| Gross weight: Scan | 17.5 kg |
| DELIVERED WITH | |
|
1 15V power supply, 1 USB cable, 3 validation plates, 1 user manual, 1 conformity certificate / warranty card |
GLP-Compliant use (Good Laboratory Practice)
Products made for Interscience by Interlab, an ISO 9001 certified company.
Accessories
Optical cleaner + wipes
Barcode reader
Optical cleaner + wipes
Optical cleaner and 50 wipes
Box dimensions: 25x19x5 cm
Gross weight: 0.32 kg
Quantity: 1
Barcode reader
Barcode reader (1D / 2D)
Box dimensions: 26x16.5x11 cm
Gross weight: 0.66 kg
Quantity: 1
