Interscience for microbiology


MiniMix 100 P CC

100 mL lab blender

Essential features

Ref. 011 110
Ref. 011 230

MiniMix 100 P CC

100 mL lab blender

Essential features

Ref. 011 110
Ref. 011 230

The MiniMix 100 P CC is made for the blending of small samples. The patented adjustable blending power enables optimal bacterial extraction, and can be adapted to the nature of the sample. The MiniMix 100 P CC is equipped with patented Click & Clean click-on paddles that allow full access to the blending chamber for cleaning.

  • Optimal blending volume: 5 - 80 mL
  • Variable speed: 3 - 6 - 9 - 12 strokes/second
  • Variable blending time: 1 second - 1 hour or ∞
  • Click & Clean click-on paddles
Price request
More

Presentation

Optimal bacterial extraction

Bacterial extraction occurs during blending, without risk of cross-contamination. The sample is then ready to be analyzed.


Optimal bacterial extraction

Adjustable blending power

The blending chamber adapts itself to the nature and the size of the sample for optimal bacterial extraction.
PATENTED


Blending power - paddles forward
Small / hard samples:
Move the paddles forward
for more pressure


Blending power - Paddles backward
Big / soft samples:
Move the paddles back
for less pressure

Click & Clean

Click & Clean click-on paddles allow complete cleaning of the unit. This patented system allows you to click-off and click-on the paddles in one second to access the entire blending chamber.
PATENTED


Click & Clean - Click off


Click & Clean - Clean


Click & Clean - Click

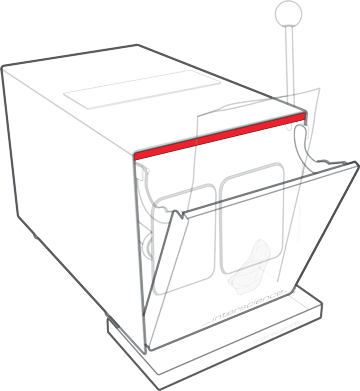

Q-Tight closure

Designed to prevent capillary rise and leakage from the top of the bag during blending.


MiniMix 100 P CC - Q-Tight closure


MiniMix - User-friendly

User-friendly

Adjust the time and blending speed according to the nature and volume of the sample: from 1 second to open-running.

Warranty

The MiniMix has a lifetime warranty on shock absorbers. Simply send back the warranty card and receive a free 3-year warranty extension.


3 year warranty - Shock absorbers lifetime warranty

Applications

MiniMix 100 P CC is ideal for homogenization following small organ biopsy. It allows microbial extraction and filtration of the sample, guaranteeing its sterility. Its blending strength is adapted to any type of biological sample.


Environment


Pharmaceutical


Cosmetic


Veterinary

Videos

Videos

From sampling to bacterial counting - Overview

Download the video

From sample preparation to bacterial analyses - Overview

Download the video

Resources

Resources

Title
Language
Type
Size
Download
PDF
1.8 Mb
Language: English
MiniMix 100 CC brochure
PDF
386 kb
Language: English
MiniMix 100 P CC technical file
PDF
216.6 kb
Language: English
EC Certificate Lab Blenders and Automatic Platers
PDF
147.1 kb
Language: English
UKCA Certificate Lab Blenders and Automatic Platers
PDF
557.3 kb
Language: English, french
ISO 9001 Certificate
PDF
46.9 Mb
Language: English
English catalog
Z
Zip
1 Mb
MiniMix P CC photo
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
PDF
1.7 Mb
Language: English
Publication:  2023
Manufacture of syringes and capsules for faecal microbiota transplantation (FMT) with Interscience equipments
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Z
Zip
132.8 kb
016 000 - Drip tray photo
Title
Language
Type
Size
Download

Specifications

Specifications

MiniMix 100 P CC
(100-127 V∼ / 220-240 V∼)
Reference 011 110
OVERVIEW
Stainless steel (304L) outer shell N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
SPECIFICATIONS
Optimal blending volume 5 - 80 mL
Drip tray Optional
Q-Tight closing Special closing to prevent leakage from the top of the bag
Speed Variable speed: 3 - 6 - 9 - 12 strokes/s
Variable blending time 1 s à 1 h or ∞
Door Plain door
Opening door 270° opening door
Voltage - Frequencies 100-127 V~ / 220-240 V~ 50-60 Hz
Fuses T3.15A L 250V / T1.25A L 250V 5x20 mm
Power 110 W
Warranty 3-year (after recording the warranty card)
Lifetime warranty Shock absorbers
International protection marking IP11
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 20 x 36.9 x 20.2 cm
Net weight 11.7 kg
Box (w x d x h) 49 x 29 x 33 cm
Gross weight 13.6 kg
DELIVERED WITH
1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 conformity certificate / warranty card
Spare parts availability 10 years
MiniMix 100 P CC
(220-240 V∼)
Reference 011 230
OVERVIEW
Stainless steel (304L) outer shell N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
SPECIFICATIONS
Optimal blending volume 5 - 80 mL
Drip tray Optional
Q-Tight closing Special closing to prevent leakage from the top of the bag
Speed Variable speed: 3 - 6 - 9 - 12 strokes/s
Variable blending time 1 s - 1 h or ∞
Door Plain door
Opening door 270° opening door
Voltage - Frequencies 220-240 V~ 50-60 Hz
Fuses T 1.25 A L 250 V 5x20 mm
Power 110 W
Warranty 3 years (after recording the warranty card)
Lifetime warranty Shock absorbers
International protection marking IP11
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 20 x 36.9 x 20.2 cm
Net weight 11.7 kg
Box (w x d x h) 49 x 29 x 33 cm
Gross weight 13.6 kg
DELIVERED WITH
1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 conformity certificate / warranty card
Spare parts availability 10 years
MiniMix 100 P CC
(100-127 V∼ / 220-240 V∼)		 MiniMix 100 P CC
(220-240 V∼)
Reference 011 110 011 230
OVERVIEW
Stainless steel (304L) outer shell N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
SPECIFICATIONS
Optimal blending volume 5 - 80 mL
Drip tray Optional
Q-Tight closing Special closing to prevent leakage from the top of the bag
Speed Variable speed: 3 - 6 - 9 - 12 strokes/s
Variable blending time 1 s à 1 h or ∞
Door Plain door
Opening door 270° opening door
Voltage - Frequencies 100-127 V~ / 220-240 V~ 50-60 Hz 220-240 V~ 50-60 Hz
Fuses T3.15A L 250V / T1.25A L 250V 5x20 mm T 1.25 A L 250 V 5x20 mm
Power 110 W
Warranty 3-year (after recording the warranty card)
Lifetime warranty Shock absorbers
International protection marking IP11
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 20 x 36.9 x 20.2 cm
Net weight 11.7 kg
Box (w x d x h) 49 x 29 x 33 cm
Gross weight 13.6 kg
DELIVERED WITH
1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 conformity certificate / warranty card

GLP-Compliant use (Good Laboratory Practice)

Products made for Interscience by Interlab, an ISO 9001 certified company.

Accessories

Accessories

Drip tray

Ref. 016 000

Drip tray

Ref. 016 000

Stainless steel security drip tray for MiniMix 100

Box: 17.5x10x2 cm
Gross weight: 0.22 kg
Quantity: 1
