MiniMix 100 W CC

100 mL lab blender

Window door

Ref. 013 110
Ref. 013 230

MiniMix 100 W CC

100 mL lab blender

Window door

Ref. 013 110
Ref. 013 230

The MiniMix 100 W CC is made for the blending of small samples. The patented adjustable blending power enables optimal bacterial extraction, and can be adapted to the nature of the sample. The MiniMix 100 W CC is equipped with patented Click & Clean click-on paddles that allow full access to the blending chamber for cleaning. The window door permits a quick check-up at a glance.

  • Optimal blending volume: 5 - 80 mL
  • Variable speed: 3 - 6 - 9 - 12 strokes / second
  • Variable blending time: 1 second - 1 hour or ∞
  • Click & Clean click-on paddles
  • Window door
Price request
More

Presentation

Optimal bacterial extraction

Bacterial extraction occurs during blending, without risk of cross-contamination. The sample is then ready to be analyzed.


Optimal bacterial extraction

Adjustable blending power

The blending chamber adapts itself to the nature and the size of the sample for optimal bacterial extraction.
PATENTED


Blending power - paddles forward
Small / hard samples:
Move the paddles forward
for more pressure


Blending power - Paddles backward
Big / soft samples:
Move the paddles back
for less pressure

Click & Clean

Click & Clean click-on paddles allow complete cleaning of the unit. This patented system allows you to click-off and click-on the paddles in one second to access the entire blending chamber.
PATENTED


Click & Clean - Click off


Click & Clean - Clean


Click & Clean - Click

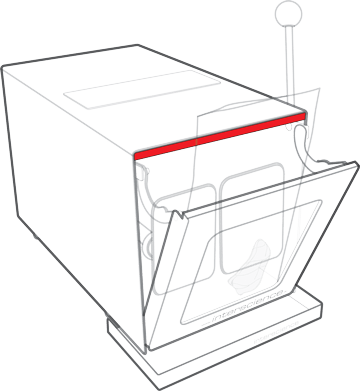

Q-Tight closing

The Q-Tight closure has been especially designed to prevent leaks from the top during blending. Up to 250 kg of pressure resistance.


MiniMix 100 W CC - Q-Tight closure


MiniMix - User-friendly

User-friendly

Adjust the time and blending speed according to the nature and volume of the sample:
from 1 second to open-running.

Warranty

The MiniMix has a lifetime warranty on shock absorbers and the window door. Simply send back the warranty card and receive a free 3-year warranty extension.


3 year warranty - window door warranty - shock absorbers

Applications

MiniMix 100 W CC is ideal for homogenizing small test samples of cosmetic products such as active ingredients. It allows microbial extraction and filtration of the sample, guaranteeing its sterility. The addition of sorbate during mixing solubilizes fat products which may create precipitates.


Environment


Pharmaceutical


Cosmetic


Veterinary

Videos

Videos

From sampling to bacterial counting - Overview

Download the video

From sample preparation to bacterial analyses - Overview

Download the video

Resources

Resources

Title
Language
Type
Size
Download
PDF
1.8 Mb
Language: English
MiniMix 100 CC brochure
PDF
404.3 kb
Language: English
Technical file MiniMix 100 W CC
PDF
216.6 kb
Language: English
EC Certificate Lab Blenders and Automatic Platers
PDF
147.1 kb
Language: English
UKCA Certificate Lab Blenders and Automatic Platers
PDF
557.3 kb
Language: English, french
ISO 9001 Certificate
PDF
1.9 Mb
Language: English, french
Flyer MiniMix Tools
PDF
46.9 Mb
Language: English
English catalog
Z
Zip
1.1 Mb
MiniMix W CC photo
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
PDF
1.7 Mb
Language: English
Publication:  2023
Manufacture of syringes and capsules for faecal microbiota transplantation (FMT) with Interscience equipments
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Title
Language
Type
Size
Download
Z
Zip
132.8 kb
016 000 - Drip tray photo
Title
Language
Type
Size
Download

Specifications

Specifications

MiniMix 100 W CC
(100-127 V∼ / 220-240 V∼)
Reference 013 110
OVERVIEW
Stainless steel (304L) outer shell N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
Window door N
SPECIFICATIONS
Optimal blending volume 5 - 80 mL
Drip tray Included
Q-Tight closing Special closing to prevent leakage from the top of the bag
Speed Variable speed: 3 - 6 - 9 - 12 strokes/s
Variable blending time 1 s - 1 h or ∞
Door Window door
Opening door 270° opening door
Voltage - Frequencies 100-127 V~ / 220-240 V~ 50-60 Hz
Fuses T 3.15 A L 250 V / T 1.25 A L 250 V 5x20 mm
Power 110 W
Warranty 3-year (after recording the warranty card)
Lifetime warranty Window door and Shock absorbers
International protection marking IP11
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 20 x 36.9 x 20.2 cm
Net weight 11.7 kg
Box (w x d x h) 49 x 29 x 33 cm
Gross weight 13.7 kg
DELIVERED WITH
1 drip tray, 1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 conformity certificate / warranty card
Spare parts availability 10 years
MiniMix 100 W CC
(220-240 V∼)
Reference 013 230
OVERVIEW
Stainless steel (304L) outer shell N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
Window door N
SPECIFICATIONS
Optimal blending volume 5 - 80 mL
Drip tray Included
Q-Tight closing Special closing to prevent leakage from the top of the bag
Speed Variable speed: 3 - 6 - 9 - 12 strokes / second
Variable blending time 1 s -1 h or ∞
Door Window door
Opening door 270° opening door
Voltage - Frequencies 220-240 V~ 50-60 Hz
Fuses T 1.25 A L 250 V 5x20 mm
Power 110 W
Warranty 3-year (after recording the warranty card)
Lifetime warranty Window door and Shock absorbers
International protection marking IP11
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 20 x 36.9 x 20.2 cm
Net weight 11.7 kg
Box (w x d x h) 49 x 29 x 33 cm
Gross weight 13.7 kg
DELIVERED WITH
1 drip tray, 1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 conformity certificate / warranty card
Spare parts availability 10 years
MiniMix 100 W CC
(100-127 V∼ / 220-240 V∼)		 MiniMix 100 W CC
(220-240 V∼)
Reference 013 110 013 230
OVERVIEW
Stainless steel (304L) outer shell N
Adjustable blending power (Patented) N
Multi-function digital screen N
Adjustable paddles N
Side-by-side paddle stop N
Click & Clean click-on paddles (Patented) N
Window door N
SPECIFICATIONS
Optimal blending volume 5 - 80 mL
Drip tray Included
Q-Tight closing Special closing to prevent leakage from the top of the bag
Speed Variable speed: 3 - 6 - 9 - 12 strokes/s
Variable blending time 1 s - 1 h or ∞
Door Window door
Opening door 270° opening door
Voltage - Frequencies 100-127 V~ / 220-240 V~ 50-60 Hz 220-240 V~ 50-60 Hz
Fuses T 3.15 A L 250 V / T 1.25 A L 250 V 5x20 mm T 1.25 A L 250 V 5x20 mm
Power 110 W
Warranty 3-year (after recording the warranty card)
Lifetime warranty Window door and Shock absorbers
International protection marking IP11
In compliance with ISO 7218, ISO 6887 and FDA BAM (Bacteriological Analytical Manual)
WEIGHT AND DIMENSIONS
Dimensions (w x d x h) 20 x 36.9 x 20.2 cm
Net weight 11.7 kg
Box (w x d x h) 49 x 29 x 33 cm
Gross weight 13.7 kg
DELIVERED WITH
1 drip tray, 1 power cable, 1 user manual, 1 quick user guide, 1 free pack of blender bags, 1 conformity certificate / warranty card

GLP-Compliant use (Good Laboratory Practice)

Products made for Interscience by Interlab, an ISO 9001 certified company.

Accessories

Accessories

Drip tray

Ref. 016 000

Drip tray

Ref. 016 000

Stainless steel security drip tray for MiniMix 100

Box: 17.5x10x2 cm
Gross weight: 0.22 kg
Quantity: 1
